Polishing round tube

  • GRADE：

    200Series、300Series、400Series

  • THICKNESS：

    0.6MM-3.0MM

  • STANDARD SIZE：

    OD 6MM-219MM, LENGTH 5.8M/6M/CUSTOMIZED

Hotline： +008613727458346
Contact Us
  • Product Details
  • Composition
  • Package

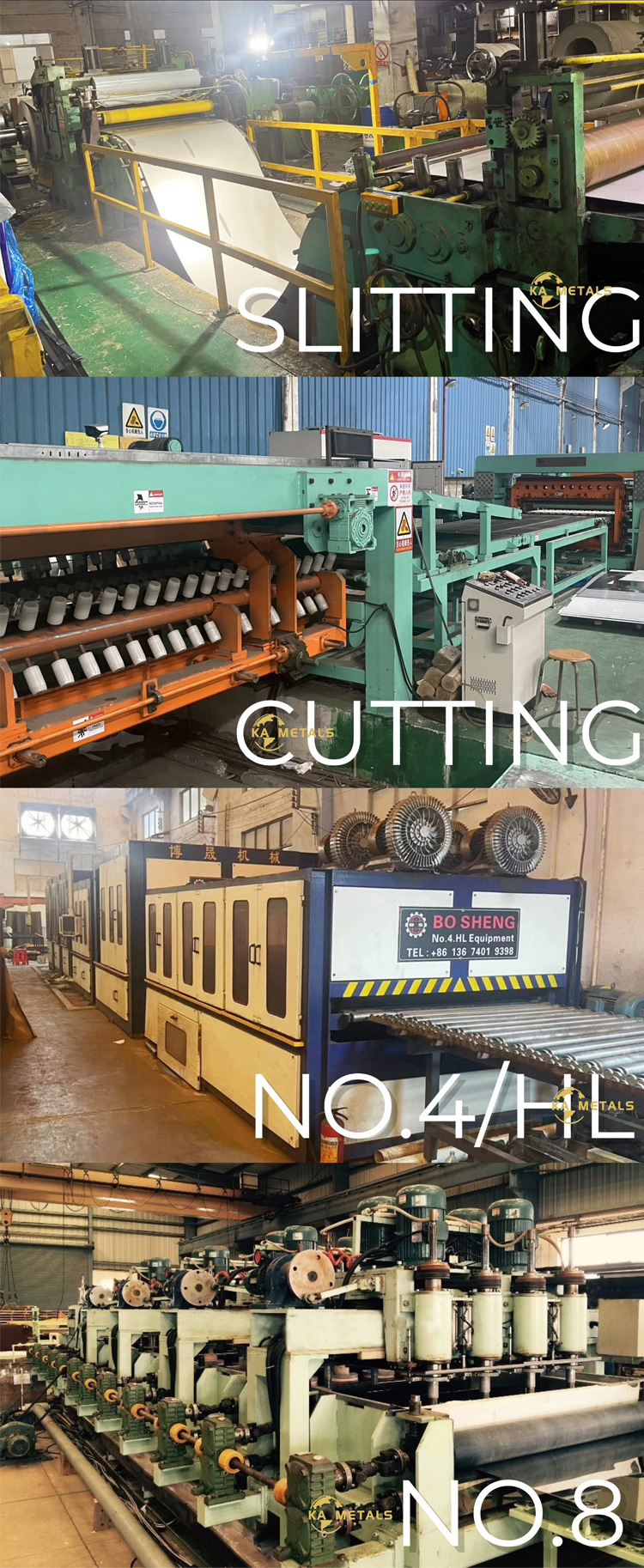

  • Product Equipment
ITEMSTAINLESS STEEL POLISHING ROUND TUBE
GRADE201(J1/J2/J3/14/J5)/304/304L
/QN1803/316/316L/321/410/409
/430 AND SO ON
MATERIAL PROCESSCOLD ROLLED
SURFACENO.4/HL/SATIN 180,240,320 GRIT
/MIRROR 400,600 GRIT
COLORORIGINAL/GOLD/BLACK/ROSE GOLD
/CHAMPAGNE GOLD/BRONZE/BLUE
/PURPLE/GREEN AND SO ON
THICKNESS(MM）0.6-3.0MM
SIZE(MM）OD 6MM-219MM, LENGTH 5.8M
/6M/CUSTOMIZED
EDGESLIT/MILL
ORIGINHONGWANG/YONGJIN/CHENGDE
/YONGWANG/RUIGANG/ANGANG
/SHANGKE/BAOSTEEL/JINHAI
/ZHONGJIN/XINFENG
APPLICATIONINDUSTRY/MEDICAL/MECHANICAL
/PLUMBING/FURNITURE
/ARCHITECTURAL DECORATION
/KITCHENWARE/ETC,


GRADEMAX WIDTH
(MM)		MIN THICKNESS/
MAX
THICKNESS
(MM)		AVERAGE
COIL WEIGHT
(MT)
J112500.11/4.53—20
J212500.11/4.53—20
J312500.11/4.53—20
J412500.11/4.53—20
J512500.11/4.53—20
30112500.20/2.53—20
30415500.17/5.03—20
43015500.20/2.53—20
410S15500.20/2.53—20



CHEMICAL COMPOSITION(%)
CSiMnPSNiCrCu
<0.1<1>8>0.03<1.0>0.8>13>0.8
<0.2<1>8>0.03<0.03>0.3>10>0.2
<0.15<0.5>9>0.03<0.06>0.8>13.5>0.5
<0.1<1>8>0.03<0.01>1.0>14>1.4
<0.2<1>9>0.03<0.06>0.3>16%>0.2
0.06-0.080.4/0.651/1.2>0.03<0.03>6%>16%-
0.06-0.08>0.3<1.5>0.03<0.1>8%>18%-
>0.03<0.40<0.40<0.022<0.004<0.03>15-
>0.03<0.40<0.40<0.022<0.004->12-



MECHANICAL PROPERTIES
YIELD STRENGTHTENSILE STRENGTH
(N/MM²)		ELONG-ATION
(%)		HARDNESS
(HVB)
≥250≥540>40%<240
≥250≥540>40%<280
≥250≥540>25%<250
≥250≥540>40%<240
≥250≥540>40%<280
≥250≥540>40%<200
≥250≥540>40%<100
≥250≥450≥22%<200
≥250≥410≥22%<200
